Home>cayken products>Diamond Core Drill

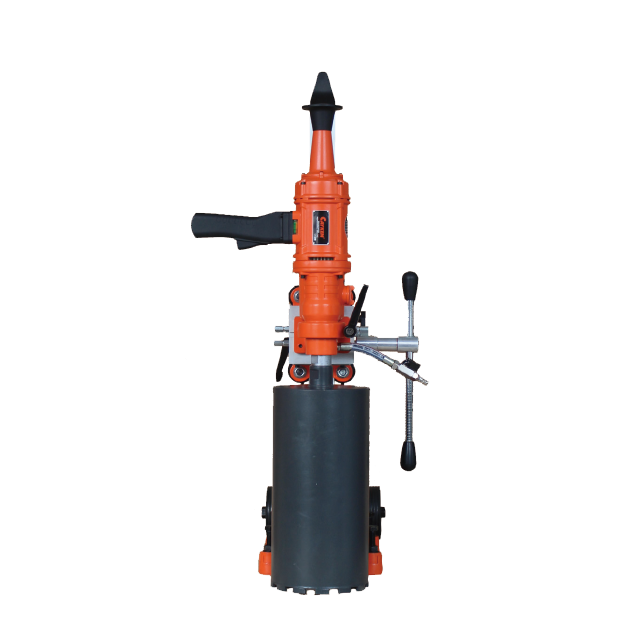

Diamond Core Drill
Oil-immmersed gearbox
speeder tool for multiple
small volume,heavynpower
machine with safty clutch
TECHNICAL PARAMETER
Brick drilling range (mm) Concrete drilling range
 Rated Voltage(v)

Rated Frequency(Hz)

Rated Input Power(w) No-load Speed(rpm) Cable length(m)
 Borehole depth（mm）
 Net/Gross Weight(kgs) Packing Weight(cm)
SCY-1520/2BS ~6”(~150) ~4”(~100)
 110/220~ 50-60 1800
 700/2770 3.5 380 9/12 53*17*43
SCY-1520/2EBS ~6”(~150)
 ~4”(~100)
 110/220~
 50-60
 1800
 100-700/2770
 3.5
 380
 9/12
 53*17*43
SCY-1780/3BS ~7”(~180)
 ~5”(~125)
 110/220~
 50-60
 1900
 700/1500/2980 3.5
 380
 10/13
 53*17*43
SCY-1780/3EBS ~7”(~180)
 ~5”(~125)
 110/220~
 50-60
 1900
 100-700/1500/2980
 3.5
 380
 10/13
 53*17*43
SCY-2020/3BS ~8”(~200)
 ~6”(~150)
 110/220~
 50-60
 2100
 590/1310/2730 3.5
 380
 12/15
 53*17*43
SCY-2020/3EBS ~8”(~200)
 ~6”(~150)
 110/220~
 50-60
 2100
 100-590/1310/2730
 3.5
 380
 12/15
 53*17*43
